Hardness Tester

ROCKWELL HARDNESS TESTER

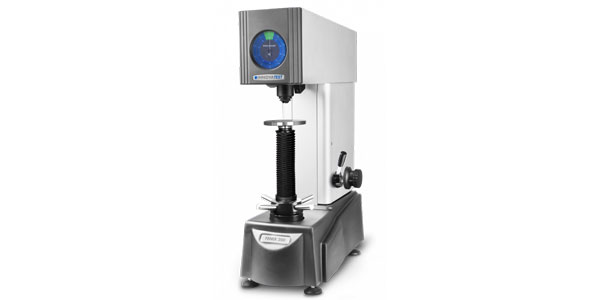

Fenix 200 AR


The Fenix 200 AR is an affordable and high quality Rockwell testing equipment from Innovatest. It comes with a dead weight force actuator load with load selector design. It also has an analogue dial for readings indicator.

REQUEST A QUOTE
Fenix 200 AR

  • Rockwell scales A, B, C, D, E, F, G, H, K, L, M, P, R, S, V
  • Test loads, pre-load 10kgf, main-load 60, 100, 150kgf
  • Adjustable hydraulic force speed damper
  • Adjustable dial indicator with 0.5 HR Rockwell units
  • Throat depth 150mm
  • Working height 240mm
  • Rockwell EN-ISO 6508, ASTM E-18, JIS Z 2245
  • Machine weight (net) 126kg
  • Machine dimensions H765mm/W270mm/D555mm
